6 Circuit 15A Hollow Bore Slip Ring 80mm Hole 240V
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Circuit Number | 6 | Current Rating | 15A |
|---|---|---|---|
| Voltage | 240 VAC/DC | Working Speed | 0~300 rpm |
| Working Temperature | -20~+60℃ | Hole Diameter | 80 mm |
| Dielectric Strength | 1000V@50Hz between circuits | Insulation | ≥500MΩ@500VDC |
| Contact Material | Precious metal | Housing Material | Aluminum alloy |
| Wire Length | 300mm (rotor), 300mm (stator) | Humidity | ≤60%RH |
| Protection Grade | IP50 | Ethernet Rate | 10Mbps/100Mbps/1000Mbps |
| USB Version | USB2.0 | ||
| เน้น | 6 circuit hollow bore slip ring,15A through hole slip ring,80mm slip ring 240V |
||
รายละเอียดสินค้า
Hollow Bore Slip Ring - 6 Circuits 15A with 80mm Hole
Key Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuit Number | 6 |
| Current Rating | 15A |
| Voltage | 240 VAC/DC |
| Working Speed | 0-300 RPM |
| Working Temperature | -20°C to +60°C |
| Hole Diameter | 80 mm |
Product Overview
LPT slip rings are through-hole slip rings designed for reliable power and signal transmission in rotating systems. The center hole can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, and other connections.
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet protocols
- HD video signals (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB 2.0
- Industrial Fieldbus protocols
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Long service life with maintenance-free operation
- Easy installation process
Technical Specifications
| Circuits | 6 |
| Current Rating | 15A |
| Voltage | 240 VAC/DC |
| Dielectric Strength | 1000V@50Hz between circuits |
| Insulation | ≥500MΩ@500VDC |
| Hole Diameter | 80 mm |
| Working Speed | 0-300 RPM |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Wire Length | 300mm (rotor and stator) |
| Working Temperature | -20°C to +60°C |
| Humidity | ≤60% RH |
| Protection Grade | IP50 |
Applications
- Industrial automation equipment
- Medical equipment
- Wind power systems
- Test and measurement equipment
- Robotics and turntable systems
- Amusement and display equipment
- High-speed railway systems
- Packaging machinery
- Marine and offshore equipment
- Construction machinery
- Semiconductor handling systems
- Cable reels

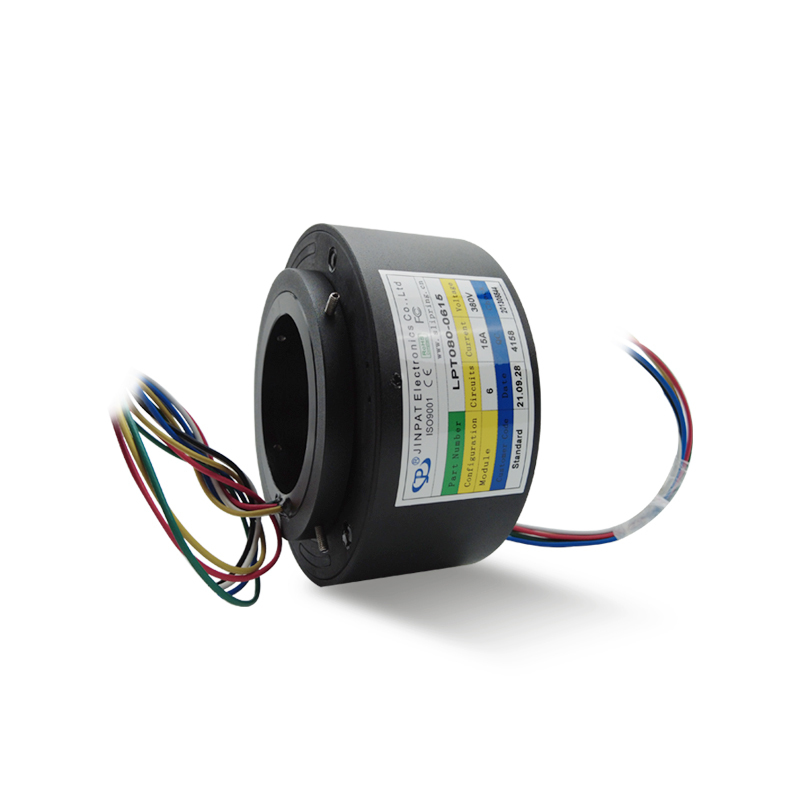

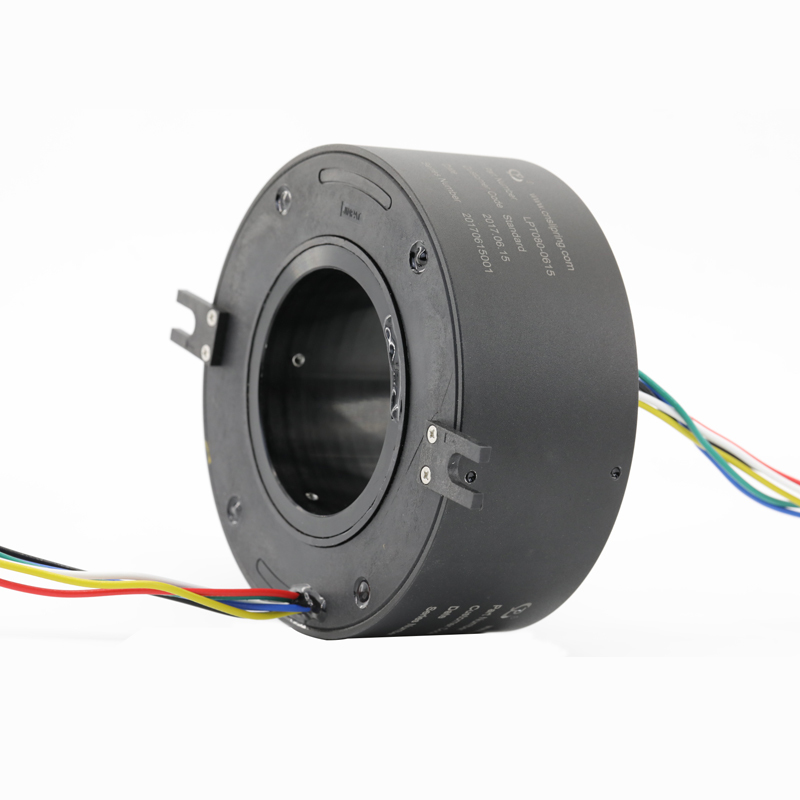

Product Images
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- 20+ years of experience since 1996
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Custom slip ring solutions available
- Fast delivery times
